Attention: This switch is with remote receiver inside, it should be controlled by a remote controller. (Remote controller not included, please search VL-RMT-02 or VL-RMT-03 in my store for purchasing).
Mechanical Life: 100,000 Times of Operation
Max. Voltage: AC 110-250V/50-60Hz
Max. Current: 5A
Size: 118mm*72mm*33mm
Model Number: VL-C304R-82
Panel material: Crystal Glass
Total Rated Load: 2000W
Function: Wireless RF Remote Control
Packaging Details: Carton box
Operating Environment: -30~70 Centigrade; Less than 95% RH
Self Consuming Power: Less than 0.1mW
Features:
Perceive the essence through the appearance.
Luxury glass panel,combine wall switch with fashion,crystal great texture.
Exquisite craftwork,well polished,luxurious experience.
Excellent quality,both appearance and built-in are impeccable.
Capacitive touch sense,sensitive touch control,feeling like smart cell phone touch.
Backlight indicator, red&blue indicator shows the on/off clearly,luminated more considerate.
Fire retardant,toughened glass with perfect fire resistance ensures the highest security.
Damp-proof,available for humid operation.
Built-in Microchip intelligence chip.
Non-discoloring, always keep new as time going.
Installation is as same as normal light switch, so does not require Negative line. Replace traditional wall switch completely and smoothly. Using with all types of lights including incandescent, fluorescent lamps, tubes, energy saver and motion sensor lamps and so on.
Special Notes:
The electric power should be off during installation.

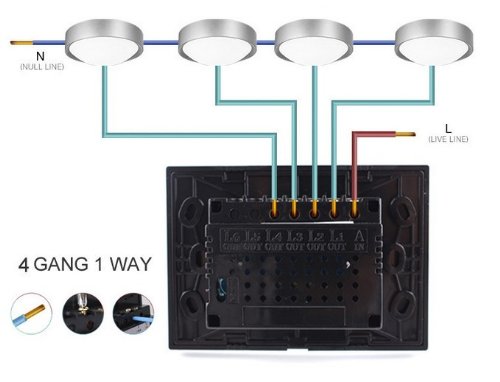

Wiring must be done according to the wiring diagrams.
Each load capacity is minimum 15W and maximum 1000W.
Features
- Touch On/Off, with remote receiver inside, it can be controlled by a remote controller.
- Home Light Touch Control, Crystal Glass Panel. Perceive the essence through the appearance
- Luxury glass panel, combine wall switch with fashion, crystal great texture
- Perfect flat plate, smooth gorgeous. Exquisite craftwork, well polished, luxurious experience
- Capacitive touch sense, sensitive touch control, feeling like smart cell phone touch. Backlight indicator, luminated more considerate
