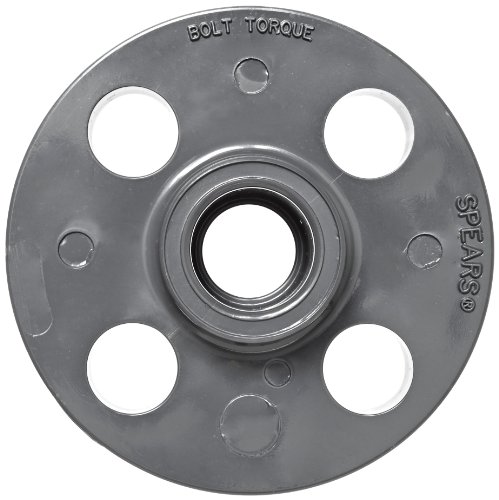

Spears 851 Series PVC Pipe Fitting, One Piece Flange, Class 150, Schedule 80, 1/2″ Socket

This Spears 851 series schedule 80 PVC Class 150 flange fitting has a socket opening and is suitable for joining two pipes or valves in a piping system or attaching a pipe to a flat surface or flange. The socket opening connects to pipes with a smooth bore for enhanced flow. This flange fitting is made of gray PVC (polyvinyl chloride) for chemical and corrosion resistance, high strength, and less weight than fittings made from metal. It is compatible with schedule 80 (thick wall) PVC pipes and fittings, and is suitable for chemical processing, industrial plating, chilled water distribution, deionized water lines, and chemical drainage and wastewater treatment systems. PVC can be connected to other materials such as steel, copper, or cast iron using transition fittings. The fitting has a maximum operating temperature of 140 degrees F and a maximum pressure rating of 150 pounds per square inch (psi) at 73 degrees F. It meets ASTM International D1784 and D2467 standards for quality assurance, is certified by National Sanitation Foundation International (NSF) for potable water service, and has a Class 150 bolt pattern per American National Standards Institute (ANSI) standard B16.5. This schedule 80 PVC Class 150 flange fitting is suitable for use in piping systems that convey drinking water, waste water, chemicals, and other liquids in a range of industries.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Spears Manufacturing produces thermoplastic fittings and valves for fluid, drain, waste, and vent systems. The company, founded in 1969 and headquartered in Sylmar, CA, meets International Organization for Standardization (ISO) standard 9001.
