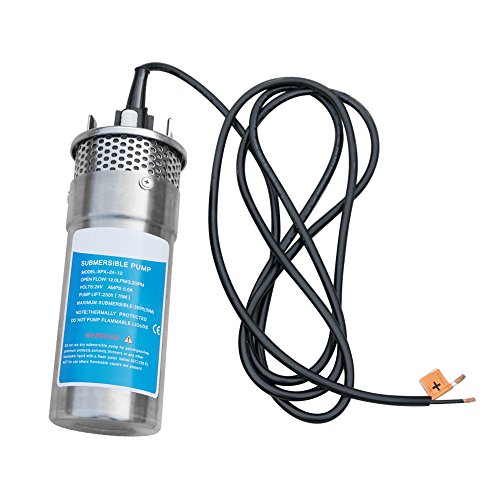

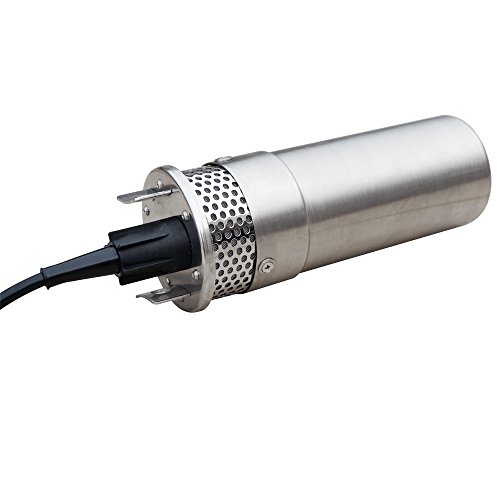

24V Stainless Shell Submersible 3.2GPM 4″ Deep Well Water DC Pump / Alternative Energy Solar Battery

Technical Parameter
Model:SPX-24-12

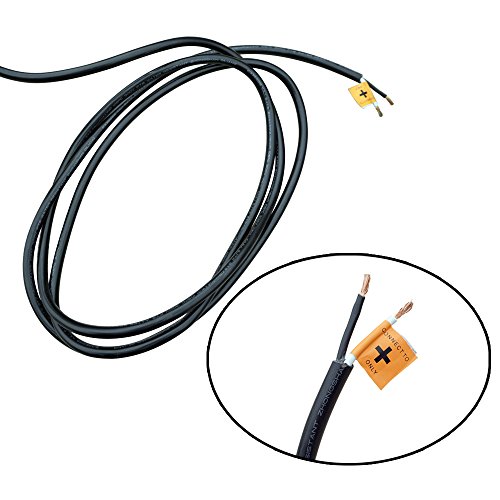

Cable:10 feet (3m)
Voltage:24V DC
Amps:5.0A
Flow Rate(lph/gph):360/96
Maximum Lift:230 Feet (70 Meters)
Maximum Submersion:300 Feet (30 Meters)
Material:Stainless steel

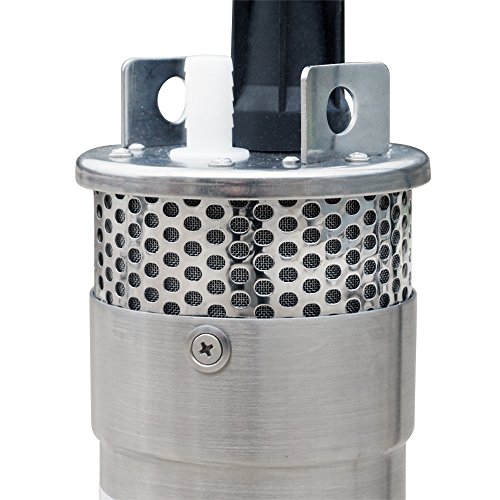

Inlet:50 Mesh Stainless Steel Screen

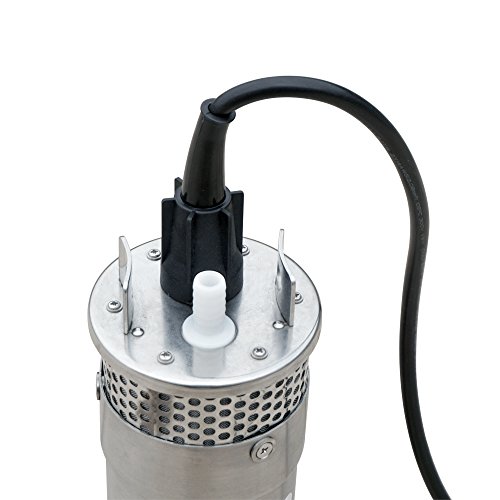

Outlet Port:1/2”(12.7mm) Barbed Fitting
Internal Bypass:105-110 PSI Max(7.2-7.5BARS)
Motor:Permanent Magnet Thermally Protected
Package Size:15.15″x5.39″x4.52″ (385*137*115mm)

Features：
● For 4.1” wells or larger
● Dual Filter
● Run dry without damage
● State of the art solid diaphragm
● Stainless Steel Fastener
● Food Grade Material
● Self-priming Function
● Medium Temperature of 60°
● Over Current,Over Temperature Protection
● Low noise,Acid Alkali,Corrosion Resistance
● Quick disconnect with ”Watertight-Gland” Design Pat Pend
● Corrosion-proof housing with stainless-steel fastener
● Stainless Steel shell, beautiful appearance, not easy corrosion.

Application:
Great for livestock watering, Irrigation, deep well, remote home and cabin.

Features

• Designed to be used with solar panels and 24V battery systems
• Easy hookup to most any existing solar panels or wind generator systems
• Can be used with or without components such as voltage controllers
• Design with positive Displacement 3 Chamber Diaphragm Pump
• Stainless Steel shell, beautiful appearance, not easy corrosion.
