2 HP 4″ Submersible Well Pump Complete Set Incl Motor, Pump-end and Control Box. 450ft Maxhead, Rated 15gpm, 22gpm Max. 1-phase 230v, 60Hz, 1.5kw, 3450 rpm, 1 Year Warranty. (Tuhorse TH4-015-12)

This complete submersible well pump set includes a 12 stage pump-end, a 2HP heavy duty oil cooled submersible motor, and a dual capacitor metal cased control box equipped with motor overload protectors.

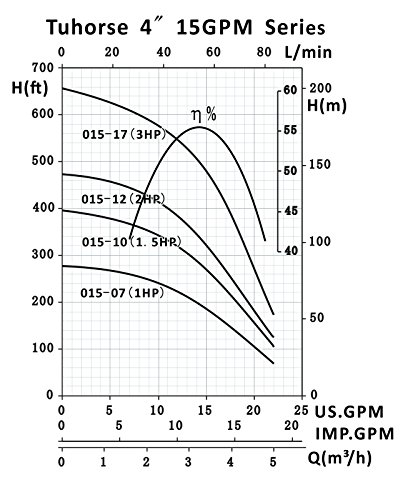

Flow at typical depth: 21GPM at 150ft., 17GPM at 250ft., 14GPM at 330ft., 7GPM at 435ft.

Connector terminal inside the control box accepts up to AWG #8 solid wire or #6 stranded wire.

This pump runs on 230V, 60Hz, Single Phase Power, and the motor uses 3 wires + 1 ground wire.

Net weight 40Lb.(18Kg); Net length: 39″ (1000mm).

1 year warranty.

external check valve(not included) is required in a water tight system but is not required for free flow applications.

Features

• Just slightly under 4″ diameter, fits 4″ and larger wells

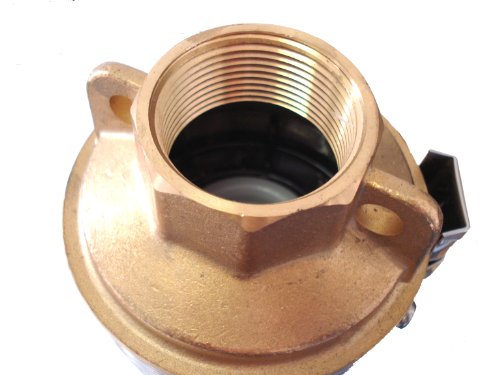

• 1.25 inch NPT brass outlet (discharge) with built-in check valve
• 12 Stages. Cut off head 450 feet. Max flow(5 – 125ft): 22GPM, rated 15GPM

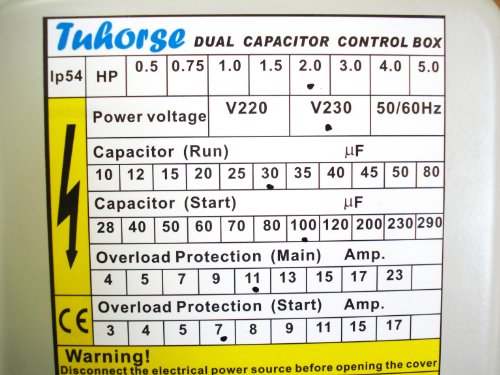

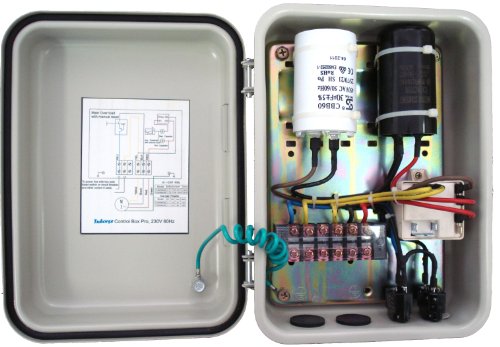

• Metal cased control box includes a 100uF start and 30uF run capacitor
• Meets NEMA industrial standards, manufactured under ISO 9001:2000, conforms to IEC34-ICE standards.
