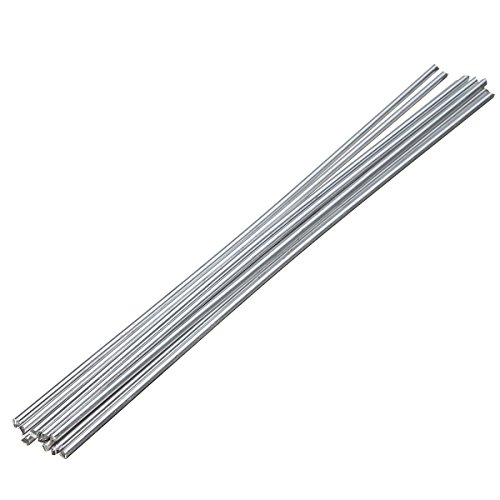

10pcs 1.6x450mm Aluminium Magnesium Low Temperature Welding Brazing Rods

Specifications

Material: Aluminum magnesium
Length: 450mm/17.7″
Diameter: 1.6mm
Color: Silver
Melting temperature: about or < 480°C
Application: Aluminium and aluminium alloy welding, brazing
Recommended for welding or brazing aluminum alloy: 1060, 1350, 3003, 3004, 3005, 5005, 5050, 6053, 6061, 6951, 7005, and cast alloys 710.0 and 711.0

Process

Light the torch, (fire shall not be too small, to be able to easily burn pipe next to the heat sink).
End of burn (preferably vertical burning, the torch can be slightly higher, with blue flames), in the burning process on the electrode heating and welding solder powder on powder put it on the stick.
With solder powder and try paddling at the required welding welding electrode, such as temperature, just like water into welding electrode.
If take off the non-stick electrodes continue to the end of heating. (Not deliberately used in the welding process the flame burned electrodes, or keep it vertical burn status. Uploaded under the electrode will depend on melting temperature.
Upon close you will find that the electrode is first melted under). Which is why cold electrodes can be causes of welding very thin aluminum parts.
Wash after welding to weld solder powder, finished.

Package Included

10 x Welding Brazing Rod

Features

• Aluminum magnesium rods, excellent corrosion resistance
• High thermal conductivity and electrical conductivity
• Minimize parent material distortion during welding
• Widely used in chemical industry aluminum equipment
• Applications include truck beds, loading ramps, docks, diamond plate, irrigation piping, engine blocks, transmission housing, etc.
