– Hot Water Output (△T=25℃): 12 L/min
– Heat Output Power (kW): 24 KW
– Suitble Water Pressure: Min.0.02MPa.Max.0.8MPa,
– Starting Pressure: 0.025MPa
– Gas Pressure: LPG:2800Pa
– Water Pipeline Spec.:
– Cold Water Pipeline : Short Pipeline equipped or G1/2″ Steel Tube
– Warm Water Pipeline : Long Pipeline equipped or G1/2″ Steel Tube
– Gas Pipeline: 20mm rubber gas hose (Outer diameter)
– Use Gas Type: Liquefied Petroleum Gas (LPG)
– Ignition Mode:
– Automatic electrical pulse ignition. (No batteries Included)
– (Automatic electric ignition powered by two qualified 1.5 Volt batteries)
– Smoke Exhaust Pipe Output Dia. (Not included): 105mm
– Over heat Protection: Over 75 °C will automatically turn off
– Exhaust Way: Open & Force Flue Exhaust Type
– Discharge Ways: Flue automatic gas discharge
– Fire Catching Ways: Electricity pulse automatic Fire Catching
– Product Dimension (MM): 590x340x150
– Although they are easy to be installed ,I do recommend a Qualified Plumber if you have any doubts.
– We assume no responsibility whatsoever for the installation of this heater or any damage incurred from its installation or use.
– Water heater must be installed in ventilated place, or install metal flue to exhaust smoke out .
1x Gas Water Heater Main Body

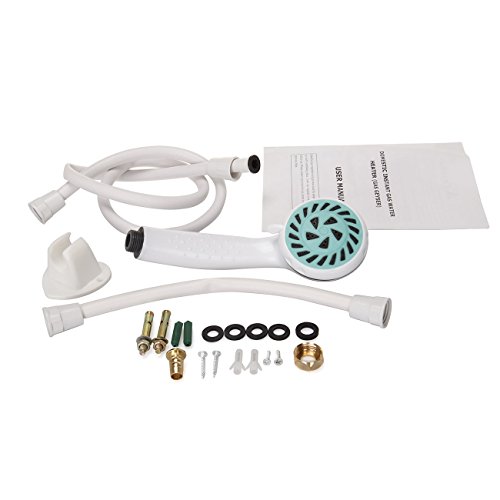

1x Shower Kit
1x English User Manual
1. Must be installed by gasman.
2. Must be used under the condition of ventilation, ensuring the normal condition of the flue kit.
3. Please use and maintain the heater according to the manual.
4. Please check the gas connection regularly to ensure there is no leaking risks.
- High efficient energy saving: the heater exchanger and main burner adopt mostly advanced energy-saving and combustion technology to decrease gas consumption and burning noise
- Low water-pressure startup: the water control linkage valve makes the heater start up under low water pressure and stable water flowing under high pressure to meet the requirements of those in water shortage areas and those living in high stairs
- Manifold auto protection: for the sake of your safety / Ion flame inspection: to automatically shut down gas power under unrexpectable flameout.
- Over water pressure protection function: to automatically decrease pressure under excessive high water pressure / 20-Minute Timer: must equipped according to regulations
- Power Off Automatically When Heater Opening Over 20 Minutes / Anti-freezing protection function: the anti-freezing apparatus can discharge the stock water to avoid damaging machine itself by freezing under cold areas or in case of long time no use / Controller design: both cold water and warm water can be properly controlled / Magnificent thin-shaped appearance: it’s designed by modern fashionable line shape.
